  ANSI B16.5 WELDING NECK FLANGE CLASS 600
stampa
ansi, asme, b16.5, blind flange, blank flange, blrf flange, blff flange, 150lbs, 300lbs, 400lbs, 600lbs, 900lbs
HYUPSHIN FLANGES
1. Standard: ANSI B16.5, ASME B16.5
2. Type:
Welding Neck Flange, WN Flange (Raised Face)
3. Pressure:
Class 600
4. Size:
1/2" - 24", larger Sizes available on request
5. Raw Material:
Carbon Steel: ASTM A105, A350
6. Process:
Forged or Stamped
7. ASTM raw material specification

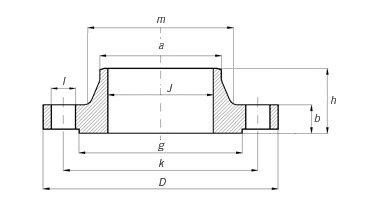

ANSI/ASME/ASA B16.5 600lb/sq.in. FLANGE WELDING NECK RAISED FACE
ø
D
b
g
m
J
h
k
Holes
l
Kg.
1/2"
95,2
14,3
34,9
38,1
22,3
22,2
66,7
4
15,9
0,800
3/4"
117,5
15,9
42,9
47,6
27,7
25,4
82,5
4
19,0
1,400
1"
123,8
17,5
50,8
54,0
34,5
27,0
88,9
4
19,0
1,600
1 1/4"
133,3
20,6
63,5
63,5
43,2
28,6
98,4
4
19,0
2,100
1 1/2"
155,6
22,2
73,0
69,8
49,5
31,7
114,3
4
22,2
3,100
2"
165,1
25,4
92,1
84,1
62,0
36,5
127,0
8
19,0
3,700
2 1/2"
190,5
28,6
104,8
100,0
74,7
41,3
149,2
8
22,2
5,400
3"
209,5
31,7
127,0
117,5
90,7
46,0
168,3
8
22,2
7,300
3 1/2"
228,6
34,9
139,7
133,3
103,4
49,2
184,1
8
25,4
8,900
4"
273,0
38,1
157,2
152,4
116,1
54,0
215,9
8
25,4
11,800
5"
330,2
44,4
185,7
188,9
143,8
60,3
266,7
8
28,6
24,500
6"
355,6
47,6
215,9
222,2
170,7
66,7
292,1
12
28,6
29,500
8"
419,1
55,6
269,9
273,0
221,5
76,2
349,2
12
31,7
43,000
10"
508,0
63,5
323,8
342,8
276,3
85,7
431,8
16
34,9
70,000
12"
558,8
66,7
381,0
400,0
327,1
92,1
488,9
20
34,9
86,000
14"
603,2
69,8
412,7
431,8
359,1
93,7
527,0
20
38,1
100,000
16"
685,8
76,2
469,9
495,3
410,5
106,4
603,2
20
41,3
142,000
18"
742,9
82,5
533,4
546,1
461,8
117,5
654,0
20
44,4
175,000
20"
812,8
88,9
584,2
609,6
513,1
127,0
723,9
24
44,4
232,000
22"
869,9
95,2
641,2
666,7
564,4
133,3
777,9
24
47,6
292,000
24"
939,8
101,6
692,1
717,5
615,9
139,7
838,2
24
50,8
330,000
NOTE:
1. Class 600 flanges except Lap Joint will be furnished with 0.25 (6.35mm) raised face, which is not included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Dimensions of sizes 1/2 through 3 1/2 are the same as for Class 400 Flanges.
6. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
