  EN1092-1 TYPE 11 FLANGE PN16
stampa
en1092-1 type 11 flange, welding neck flange, weld neck flange, wn flange, wnrf flange
HYUPSHIN FLANGES
1. Standard: EN1092-1
2. Type:
Weld Neck Flange, WN Flange (Raised Face)
3. Pressure:
PN16
4. Size:
DN15 - DN1000, larger Sizes available on request
5. Raw Material:
P245GH, P250GH, P265GH, C22.8, S235JR
6. Process:
Forged
7. Basic requirements for Material and Flange

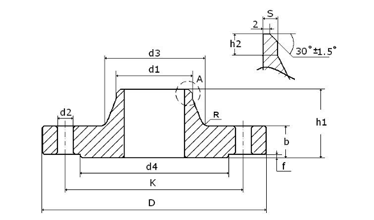

EN 1092-1 TYPE 11 PN16 WNRF FLANGE
Rated Diameter Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 k D b h1 d3 s r h2 d4 f d2 Thread Bolt holes Kg
15 21,3 65 95 16 38 32 2,00 4 6 45 2 14 M12 4 0,678
20 26,9 75 105 18 40 40 2,30 4 6 58 2 14 M12 4 0,768
25 33,7 85 115 18 40 46 2,60 4 6 68 2 14 M12 4 1,090
32 42,4 100 140 18 42 56 2,60 6 6 78 2 18 M16 4 1,300
40 48,3 110 150 18 45 64 2,60 6 7 88 3 18 M16 4 1,910
50 60,3 125 165 18 45 74 2,9 6 8 102 3 18 M16 4 2,530
65 76,1 145 185 18 45 92 2,9 6 10 122 3 18 M16 4 3,030
80 88,9 160 200 20 50 105 3,2 6 10 138 3 18 M16 8 3,920
100 114,3 180 220 20 52 131 3,6 8 12 158 3 18 M16 8 4,620
125 139,7 210 250 22 55 156 4,0 8 12 188 3 18 M16 8 6,300
150 168,3 240 285 22 55 184 4,5 10 12 212 3 22 M20 8 7,810
200 219,1 295 340 24 62 235 6,30 10 16 268 3 22 M20 12 11,500
250 273,0 355 405 26 70 292 6,30 12 16 320 3 26 M24 12 16,700
300 323,9 410 460 28 78 344 7,10 12 16 378 4 26 M24 12 22,100
350 355,6 470 520 30 82 390 8,00 12 16 438 4 26 M24 16 32,800
400 406,4 525 580 32 85 445 8,00 12 16 490 4 30 M27 16 41,100
450 457,0 585 640 34 83 490 8,00 12 16 550 4 30 M27 20 48,500
500 508 650 715,0 36 84 548 8,0 12 16 610 4 33 M30 20 63,400
600 610 770 840,0 40 88 670 10,0 12 18 725 5 36 M33 20 96,000
700 711 840 910,0 40 104 755 10,0 12 18 795 5 36 M33 24 96,500
800 813 950 1025,0 41 108 855 12,5 12 20 900 5 39 M36 24 122,000
900 914 1050 1125,0 48 118 955 12,5 12 20 1000 5 39 M36 28 155,000
1000 1016 1170 1255,0 59 137 1058 12,5 16 22 1115 5 42 M39 28 233,000
1200 1219 1390 1485,0 78 160 1262 14,2 16 30 1330 5 48 M45 32 390,000
1400 1422 1590 1685,0 84 177 1465 16,0 16 30 1530 5 48 M45 36 495,000
1600 1626 1820 1930,0 102 204 1668 17,5 16 35 1750 5 56 M52 40 760,000
1800 1829 2020 2130,0 110 218 1870 20,0 16 35 1950 5 56 M52 44 929,000
2000 2032 2230 2345,0 124 238 2072 22,0 16 40 2150 5 62 M56 48 1.185,000
Tutte le nostre flange rispettano le normative europee EN - italiane UNI - tedesche DIN - americane ANSI. Realizziamo flange piane - libere - per cartelle - a collarino - filettare - cieche I materiali impiegati sono: Acciaio al carbonio = ASTM A105 - C22,8 - RST37,2, Acciaio inossidabile = ASTM A182 F304 - F316L
Toutes nos brides respectent les normes européennes EN - italiennes UNI - allemandes DIN - américaines ANSI. Nous réalisons des brides plates - libres - en collet -filetées - pleines.Les matériaux employés sont: Acier au carbone : ASTM A 105 - C22,8 - RST37,2, Acier inoxydable : ASTM A 182 F304 - F316L
