The Marking Works for Steel Flanges. |
|
Every Standards have clearly requirements for steel flanges' marking style, usually the marking words include seller's Logo, buyer's Logo (OEM), standard number, flange's type, flange's pressure, flange's size, flange's material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange's dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import. |
• |
The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc |
| |
LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER, MADE IN CHINA |
• |
The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc |
| |
LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER, MADE IN CHINA |
• |
The Marking Style For JIS, KS norms etc, special with KS Mark |
|
LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK, MADE IN CHINA |
• |
The Marking Style for BS 4504 norms etc |
| |
LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER, MADE IN CHINA |
• |
The Marking Style for GOST 12820, GOST 12821 norms etc |
| |
LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER, MADE IN CHINA |
• |
The Marking Style for SABS 1123, SANS 1123 norms etc |
|
LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER, MADE IN CHINA |
| • |

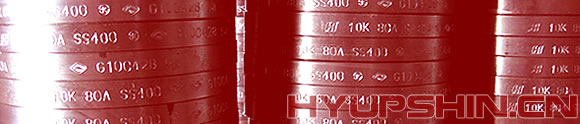

Shandong Hyupshin Flanges Co., Ltd owns steel flanges' marking machines, one type is rolled flange pressure engrave machine, another type is galvano-cautery marking machine. The first type, marking on flange depth is about 1-1.5mm, when coating with color paint, it is also very clearly, marking length can be within 70 letters and numbers. And the rolled marking machine can mark words according to buyers requirements, easy to exchange. |
|
|
|
|
|
